Western Blotting Overview: Principle, Workflow, Controls and Troubleshooting

A practical guide to conventional denaturing SDS-PAGE workflows with cell and tissue extracts.

Western blotting (WB), or protein immunoblotting, detects selected proteins after electrophoretic separation and transfer to a membrane. It can show an antibody-reactive band at an apparent molecular weight and support comparisons of relative protein abundance. Reliable interpretation requires evidence that the band represents the intended target and that the measured signal responds appropriately to protein amount. A visible band alone does not establish protein identity, activity or a biological mechanism. [1,7,8,15]

When a treatment lane looks darker than its control, first establish that the band is target-related and both signals are comparable. This guide connects that question to preparation, transfer, controls and analysis. The reference incubation schedule illustrates one documented detection branch; extraction, electrophoresis and transfer settings must be selected for the actual target, reagents and apparatus.

1. What a western blot measures

In sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE), detergent treatment and, commonly, reduction unfold proteins and alter their charge behavior so that migration primarily reflects size. The resulting band position gives an apparent molecular weight, estimated against a protein ladder. It is not a direct measurement of the exact mass of an intact, active protein. [2]

After transfer, membrane-bound proteins become accessible to antibodies. A primary antibody recognizes an epitope, the portion of the target to which it binds. In indirect detection, a labeled secondary antibody recognizes the primary antibody. Horseradish peroxidase (HRP) converts an enhanced chemiluminescence (ECL) substrate into a light-producing reaction; a fluorescent label is read using compatible excitation and emission channels. Directly labeled primary antibodies provide another detection branch. [1,5]

Conventional reducing SDS-PAGE does not aim to preserve native protein conformation or biological activity. Non-reducing conditions retain disulfide bonds but may still be denaturing when SDS is present. Native electrophoresis is a separate choice with different migration behavior and antibody requirements. [2]

2. Plan the experiment and materials

Define whether the question concerns total target abundance, a cleavage product or a particular modification. Record the organism, cell or tissue, relevant isoform or construct, antibody epitope and expected band pattern. A tag, processing event or modification can change the apparent position or the species recognized by an antibody. Consult the antibody's actual WB validation rather than assuming that performance in another application transfers to WB. [6]

Prepare the materials for each stage:

• Extraction: a suitable lysis buffer, relevant inhibitors, chilled collection equipment and a compatible protein assay.
• Separation: loading buffer, reducing reagent when appropriate, a gel and matching running buffer, a protein ladder and an electrophoresis system.
• Transfer: a membrane, the apparatus-specific stack and transfer buffer, and cooling when required by that system.
• Immunodetection: validated antibodies, compatible blocking and wash buffers, incubation vessels and gentle agitation.
• Measurement: the appropriate imager, detection reagents, and software that retains raw images and analysis settings.

Follow reagent safety data sheets and apparatus instructions for methanol, reducing agents, acrylamide handling and electrical equipment.

Plan the lane map, controls and normalization approach before collecting samples. Keep sample identities and independent biological replicates traceable through extraction, loading and analysis. [6,10]

3. Prepare samples and calculate loading

Choose extraction conditions for the sample

• Adherent cells: remove residual medium and collect material using a method compatible with the target.
• Suspension cells: harvest the pellet and remove medium-derived proteins as appropriate.
• Tissues: use consistent sampling and disruption; differences in tissue composition can affect comparisons.

A soluble extract and a membrane or organelle fraction are different analytical inputs. [2,9]

When the method uses clarification, collect the intended fraction deliberately. Retaining the supernatant can discard poorly solubilized target protein in the pellet. Use suitable protease inhibitors and, when studying phosphorylation, appropriate phosphatase inhibition. Keep handling and collection intervals consistent. Aliquot preparations to avoid unnecessary freeze–thaw cycles and verify stability for the preparation; a single storage duration cannot be assigned to every protein. [2,11]

Measure concentration before adding interfering reagents

Choose a protein assay compatible with the actual lysate. Detergents, reducing agents and chelators can affect assay behavior; compatibility limits belong to the specific formulation. For example, the standard Pierce bicinchoninic acid (BCA) assay guide treats reducing and metal-chelating substances as potential interferences and describes alternatives. Do not transfer that kit's limits to every BCA product. Dilute unknowns into the assay's working range, apply its required blank correction and calibration model, then multiply the interpolated concentration by the sample dilution factor. Keep standards, blanks and unknowns under the same assay conditions. [3]

Calculate protein mass and final buffer concentration

Use consistent units:

Sample volume (µL) = desired protein mass (µg) ÷ lysate concentration (µg/µL).

Illustrative calculation, not a recommended universal loading amount: a lysate at 2.0 mg/mL contains 2.0 µg/µL. Obtaining 20 µg therefore requires 10 µL of lysate. To prepare a final volume of 25 µL with a 5× loading-buffer stock at 1×, combine 10 µL lysate, 5 µL stock and 10 µL compatible diluent. This calculation assumes the stock already has the components needed for the selected preparation. If a reducing reagent must be added separately, include its volume in the final-volume calculation.

Select the actual loading amount from a pilot response-range experiment, considering target abundance and the gel's capacity. Equal mass does not guarantee equivalent extraction recovery or equal cell numbers. [7,8]

Select heating and reduction deliberately

Follow target- and antibody-appropriate preparation conditions. Some multipass membrane proteins aggregate after boiling, so a high-temperature treatment is not a universal requirement. Keep the preparation identical across samples that will be compared. Do not infer complete denaturation or preservation of activity from a heating time alone. [2]

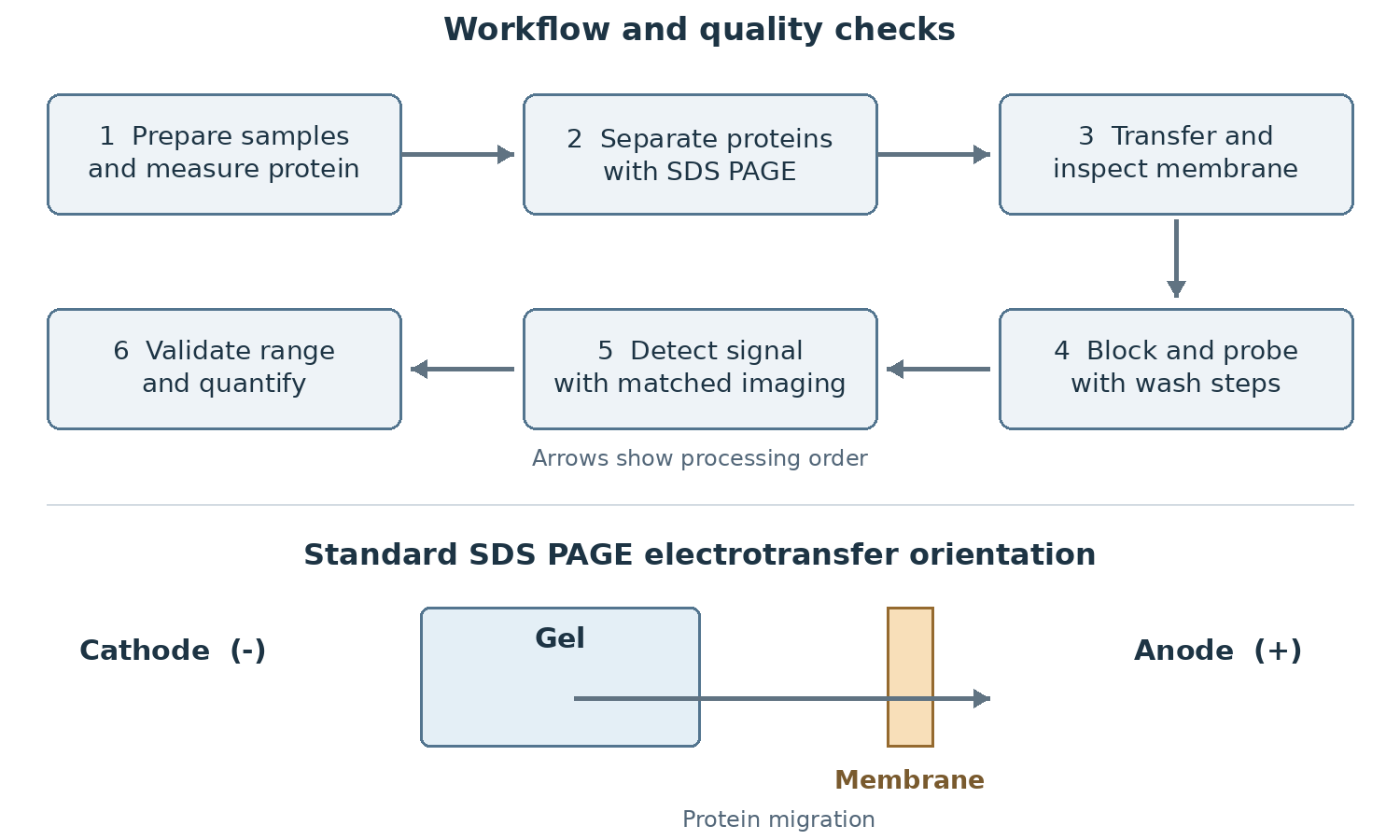

4. Separate proteins and verify transfer

1. Select the separation system. Choose the gel chemistry and acrylamide range for the expected species. Use its specified running buffer; Tris-glycine, Bis-Tris and other systems are not interchangeable merely because each separates proteins.
2. Load the samples and ladder. Use the planned protein mass and keep final buffer conditions comparable. Check well capacity and sample viscosity before increasing the load.
3. Run the gel using the apparatus instructions. Inspect separation and the tracking front; avoid assuming that one voltage or run time resolves every target.
4. Prepare the membrane and assemble the transfer stack. Follow the membrane's wetting instructions and remove trapped bubbles. In standard transfer of SDS-coated proteins, the membrane lies on the anode side of the gel, so proteins migrate from the gel toward the positive electrode.
5. Inspect transfer before immunodetection. Examine the visible ladder and a suitable total-protein image or reversible stain. When useful, inspect residual protein in the gel to help distinguish poor release from poor membrane retention. [4,7]

Nitrocellulose and polyvinylidene difluoride (PVDF) membranes differ in handling and compatibility. Conventional hydrophobic PVDF needs appropriate prewetting; ready-to-use formats may have different instructions. Select pore size and transfer conditions together for the target. Longer transfer can help an incompletely transferred large protein, but can worsen loss of a small protein. The actual gel, buffer, membrane and apparatus determine the setting. [4]

5. Select antibodies and detection

Choose a primary antibody supported for WB in the relevant sample and species. For a secondary antibody, match the primary's host species, immunoglobulin class or subclass, and detection label. Cross-adsorption can help when other immunoglobulins are present, but suitability must be checked in the intended assay. When using several antibodies together, test each separately before interpreting a multiplex result. [13]

Both formats below detect proteins transferred to a membrane. Select a membrane and blocker compatible with the label. These are two common imaging formats; chromogenic detection is another option outside this comparison. [14]

Neither method is automatically quantitative or universally more sensitive. Confirm performance using representative samples and the actual detection conditions. [8,14]

For simultaneous targets near the same apparent size, consider validated fluorescence multiplexing. For an established HRP assay, begin with its compatible substrate and acquisition settings. [13,14]

6. Use a defined incubation schedule

Blocking occupies membrane sites that could bind detection reagents nonspecifically. Washing removes unbound reagents. The best blocker and antibody diluent depend on the antibody and detection system; milk and bovine serum albumin (BSA) can produce different background patterns. Some phospho-specific antibodies react with components of milk. Use the antibody's tested diluent rather than a blanket rule for all phospho-antibodies. [6,11]

The following reference branch summarizes the CST nitrocellulose protocol for an unconjugated primary followed by an HRP secondary. It documents a starting schedule, not an EnkiLife kit protocol or a validated schedule for every target. Tris-buffered saline with Tween 20 is abbreviated TBST. [5]

Adapt coverage volume to membrane size. Detection substrate preparation and incubation must follow the selected substrate's instructions. Avoid unintended membrane drying during this wet incubation sequence. [5]

7. Include controls that answer different questions

These checks address different sources of uncertainty. Combine evidence for band identity rather than accepting the expected size as sufficient validation. For a cleaved target, verify which fragment contains the antibody's epitope. [12,15]

8. Quantify bands within a validated response range

Establish the range before comparing samples

Run a dilution series of representative material and measure the target and normalization signal under the intended conditions. For a twofold series, each subsequent dilution can be prepared by mixing an aliquot of the preceding dilution with an equal volume of compatible diluent; document every step and keep final loading-buffer concentration consistent. Evaluate background-corrected signal against the protein mass loaded. [7,10]

Use a range in which the response supports the calculation being applied. A detector image without clipped pixels can still contain a saturated biochemical response. A high correlation alone also does not establish that signal is directly proportional to protein amount. If doubling protein does not produce an appropriate change in corrected signal, reduce loading or revise detection conditions and repeat the range check. Do this for the target and denominator. [8]

Define the calculation and denominator

Apply one documented background procedure across the samples. For a local-background method:

Corrected band signal = integrated signal in the band region − region area × mean local background per pixel.

Choose the local region consistently and avoid nearby bands or defects. Keep raw images, regions of interest and corrected measurements distinguishable. A weak signal close to background is not made reliable by subtracting more background. [7,8]

When both signals support proportional measurement:

Normalized target = corrected target signal ÷ validated normalization signal.

Relative change = normalized target in the test sample ÷ the stated reference value.

Total-protein normalization can avoid dependence on one abundant housekeeping protein, but its staining method and usable range still require validation. β-actin, GAPDH or another reference must be shown suitable for the tissues and treatments being compared; stable expression cannot be assumed. [7,9]

State what the denominator means. Target per unit of loaded total protein is different from target per cell or per tissue mass. For phospho/total measurements, validate both antibody responses; a relative phospho/total signal ratio is not automatically the fraction of molecules phosphorylated. [6,10]

Preserve the experimental unit

Apply consistent acquisition and analysis rules across compared lanes. Independently harvested biological samples determine biological replication; rerunning an extract or measuring another lane is a technical repeat. Report the number and identity of independent units, normalization, reference group and handling of technical repeats. Retain full membrane images and acquisition settings so the displayed bands can be traced to the measurements. [10]

9. Troubleshoot by the observed problem

Start with the failed checkpoint. Keep a successful condition or positive control alongside an optimization, and change one main factor at a time when practical. [11]

A conventional prestained ladder is evaluated in visible light. Its absence from an ECL image is not evidence of failed transfer unless that ladder is specifically designed for the selected detection chemistry. Conversely, a visibly transferred ladder does not prove that the target transferred efficiently. Check the target's molecular-weight region and the sample transfer pattern. [4,5]

10. Compare workflow times fairly

Define the start and finish before comparing a rapid kit with a conventional workflow. Separate sample collection and extraction, gel preparation, active processing, incubation, imaging and analysis. An overnight incubation increases elapsed time without representing continuous hands-on work.

The EnkiLife RA10020 product is marketed as a 2-Hour Rapid Western Blot Ready-to-Use Complete Workflow Kit. Treat that schedule as a product-specific workflow to evaluate with its current instructions and the intended targets. A shortened or omitted blocking step in such a system does not justify omitting blocking from a conventional antibody protocol.

For a local comparison, use the same sample set, target panel and acceptance criteria. Record elapsed time, usable transfer, specificity, background and quantitative response. A shorter schedule or a manufacturer's performance claim does not by itself demonstrate improved reproducibility in a new experiment.

11. Frequently asked questions

Can I strip a membrane and probe it again?

Sometimes. Stripping can alter retained antigen or leave residual detection reagents, so verify removal of the previous signal and preservation of the next target. Reprobing requires validation for the specific antibodies and sequence. Separate blots or a validated multiplex measurement may be more appropriate when accurate comparison is the priority. [13]

Can I compare samples run on different membranes?

Use a planned design, such as a shared reference sample on each blot, and keep the detection and analysis conditions consistent. Evaluate the reference within each assay's usable range. A shared reference helps assess between-blot variation; it cannot repair saturation or a nonspecific band. [10]

Does a whole-cell western blot show where a protein is located?

No. A whole-cell extract combines material from different compartments. Localization questions require an appropriate imaging or fractionation approach. If fractionation is used, assess fraction identity, contamination and recovery before attributing a band change to redistribution. [2]

12. EnkiLife resources and reagent selection

Choose reagents by the required workflow, target validation and compatibility before comparing brand names or timing claims.

Start with a pilot that combines a positive sample, transfer inspection and a dilution series. Use the resulting evidence to choose loading and detection settings before comparing the full biological experiment.

References

1. Towbin H, Staehelin T, Gordon J. Electrophoretic transfer of proteins from polyacrylamide gels to nitrocellulose sheets: procedure and some applications. PNAS. 1979;76:4350–4354. PubMed. DOI: 10.1073/pnas.76.9.4350.
2. Abcam. Sample preparation for western blot. Technical guide. Accessed October 28, 2026.
3. Thermo Fisher Scientific. Pierce BCA Protein Assay Kit User Guide. MAN0011430, revision D. Official guide. Accessed October 28, 2026.
4. Thermo Fisher Scientific. Western Blotting Transfer Methods. Technical resource. Accessed October 28, 2026.
5. Cell Signaling Technology. Western Blotting Protocol. Official protocol. Accessed October 28, 2026.
6. Pillai-Kastoori L, et al. Antibody validation for Western blot: By the user, for the user. J Biol Chem. 2020;295:926–939. PubMed. DOI: 10.1074/jbc.RA119.010472.
7. Taylor SC, et al. A defined methodology for reliable quantification of Western blot data. Mol Biotechnol. 2013;55:217–226. PubMed. DOI: 10.1007/s12033-013-9672-6.
8. Butler TAJ, et al. Misleading Westerns: Common Quantification Mistakes in Western Blot Densitometry and Proposed Corrective Measures. Biomed Res Int. 2019;2019:5214821. PubMed. DOI: 10.1155/2019/5214821.
9. Eaton SL, et al. Total Protein Analysis as a Reliable Loading Control for Quantitative Fluorescent Western Blotting. PLoS One. 2013;8:e72457. PubMed. DOI: 10.1371/journal.pone.0072457.
10. Taylor SC, Posch A. The design of a quantitative western blot experiment. Biomed Res Int. 2014;2014:361590. PubMed. DOI: 10.1155/2014/361590.
11. Cell Signaling Technology. Western Blotting Troubleshooting Guide. Official troubleshooting resource. Accessed October 28, 2026.
12. Abcam. Western blot training, part 1: Controls for western blot. Official training resource. Accessed October 28, 2026.
13. Bio-Rad. How to Use Secondary Antibodies: FAQs. Official technical resource. Accessed October 28, 2026.
14. Thermo Fisher Scientific. Western Blot Detection Reagents. Detection methods comparison. Accessed October 28, 2026.
15. Uhlén M, et al. A proposal for validation of antibodies. Nat Methods. 2016;13:823–827. PubMed. DOI: 10.1038/nmeth.3995.
